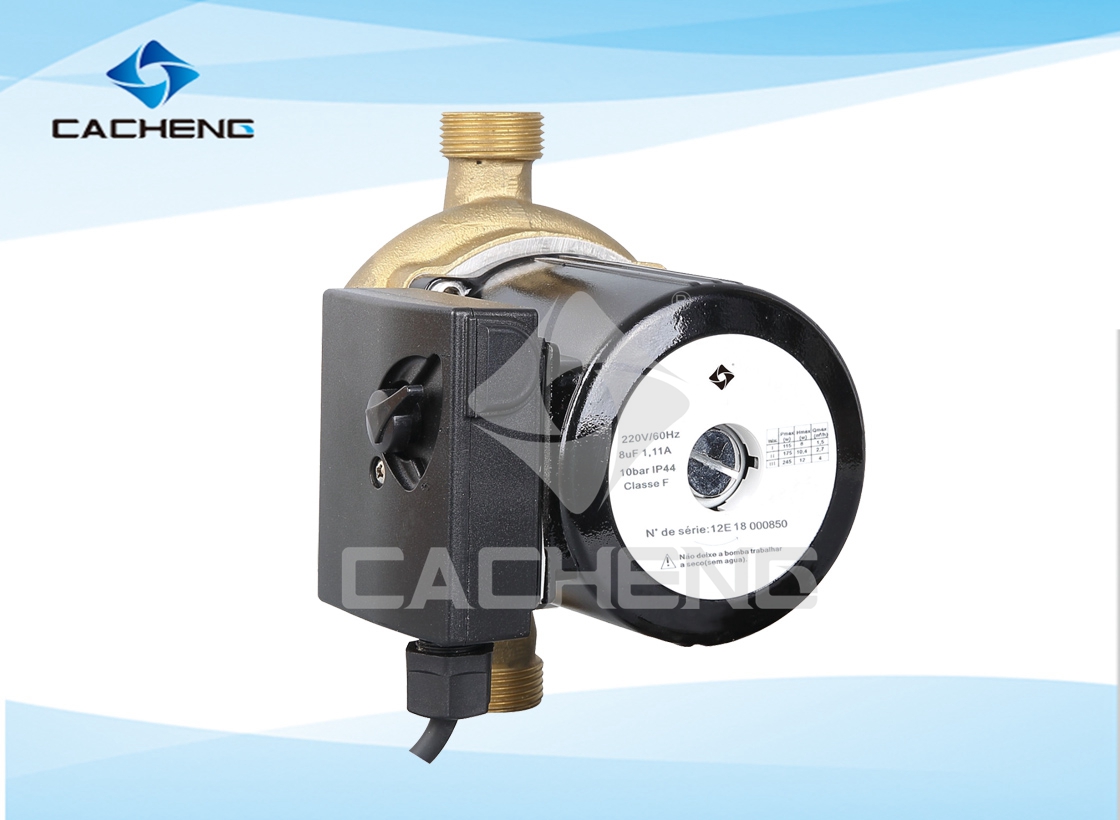

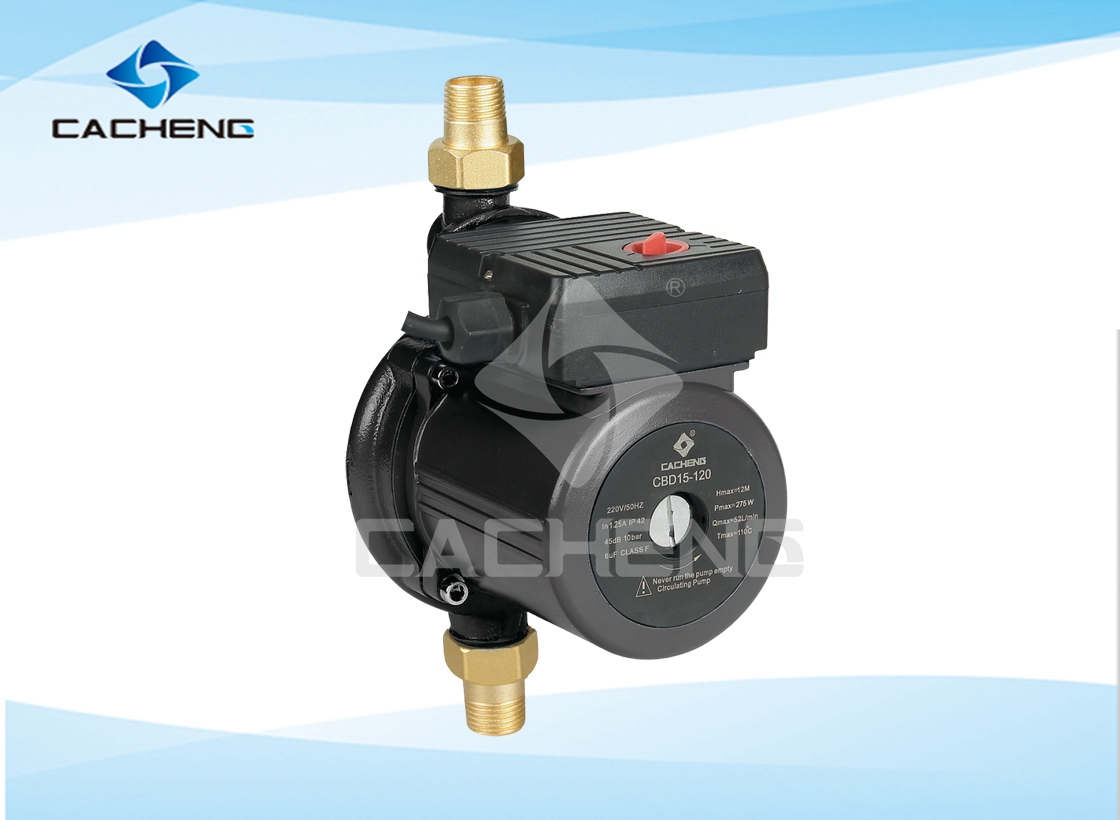

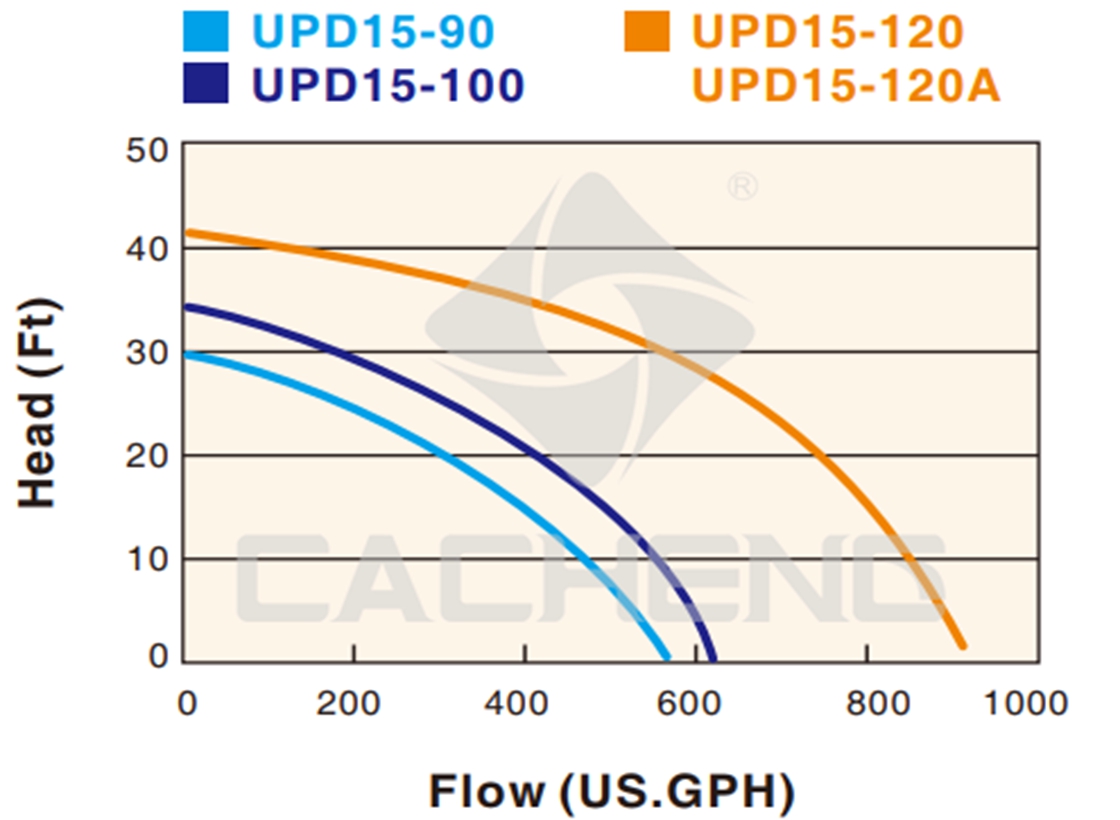

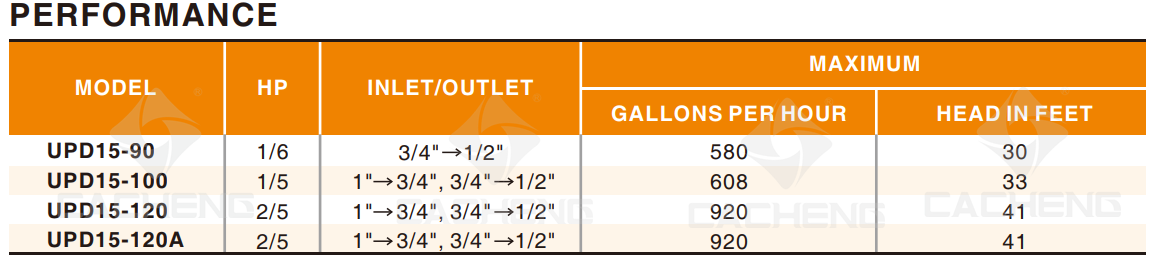

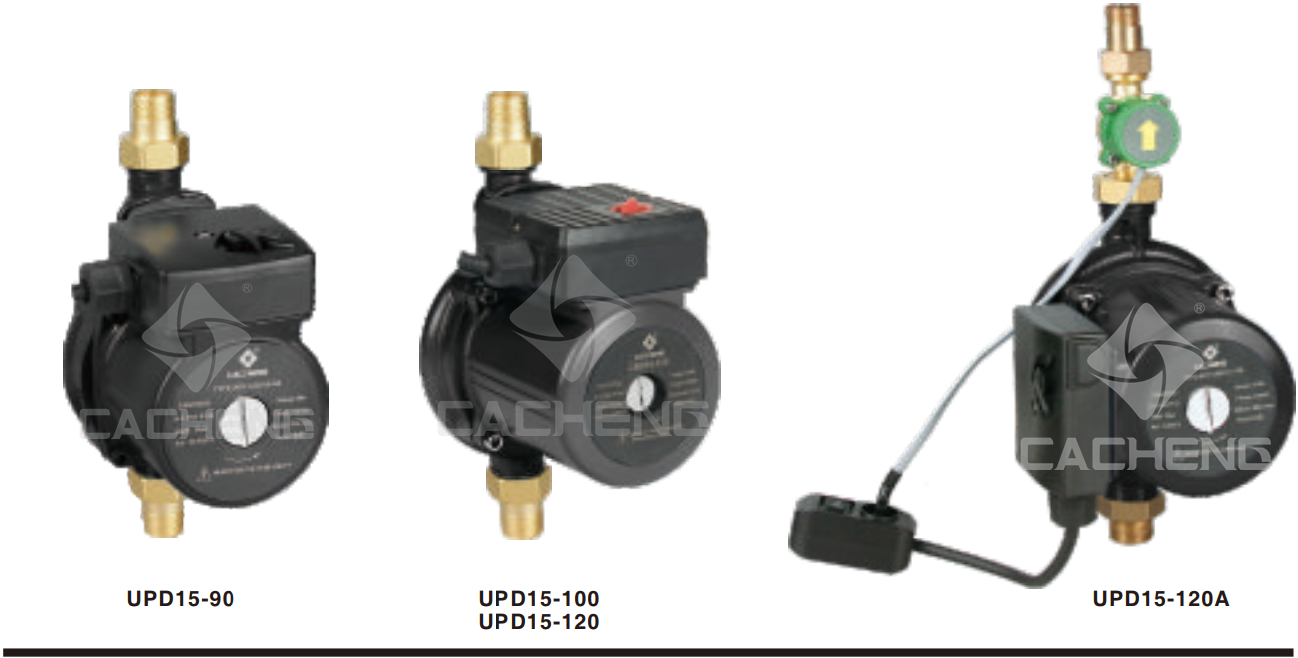

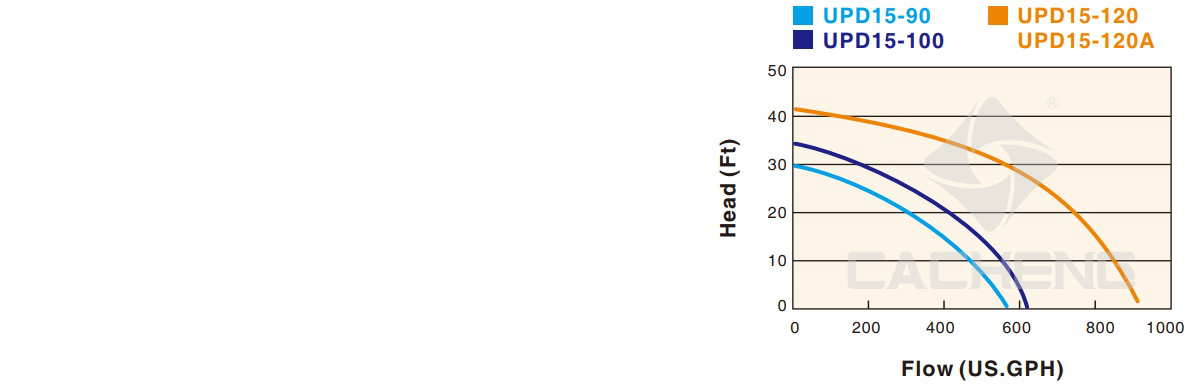

UPD15-90 / UPD15-100 / UPD15-120 / UPD15-120A

110V/60Hz,127V/60Hz, 220V/60Hz

Stainless steel encapsulated rotor

Stainless steel rotor and bearing plate

Pump can be set to “Manual”, “Automatic” or “off”

Max liquid temperature 140℉

Max working pressure 87PSI

Cast iron pump head

This pump is a circulator pump designed for pressure

boosting of domestic water in domestic properties. The pump provides additional

pressure to showers, taps and similar outlet points for domestic water.

This pump is used in open systems.

Approval from the local water company must be obtained if the

pump is to be connected directly to the main water.

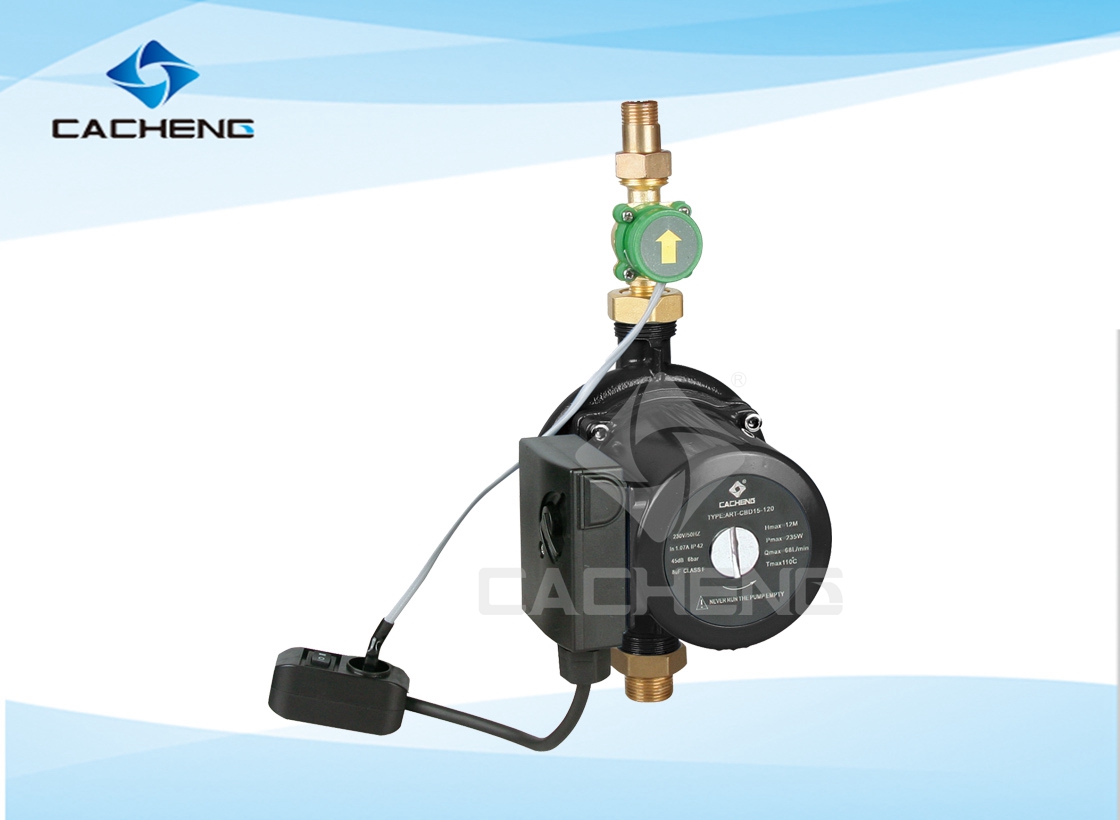

The pump incorporates a flow switch which starts or stops the

pump when a tap is turned on or off

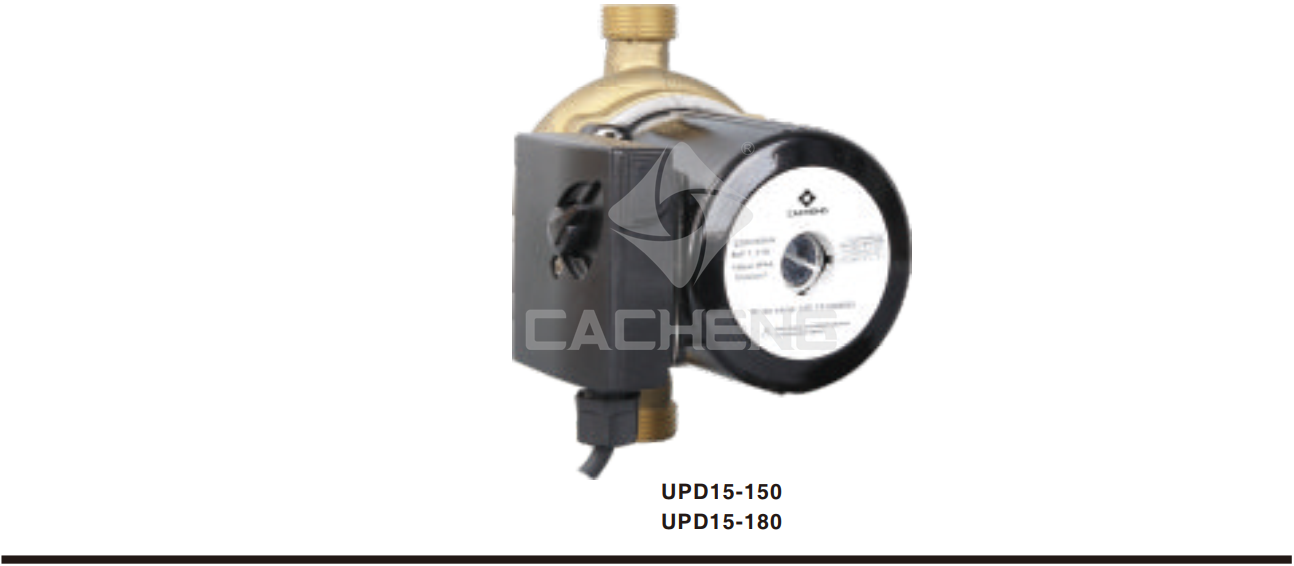

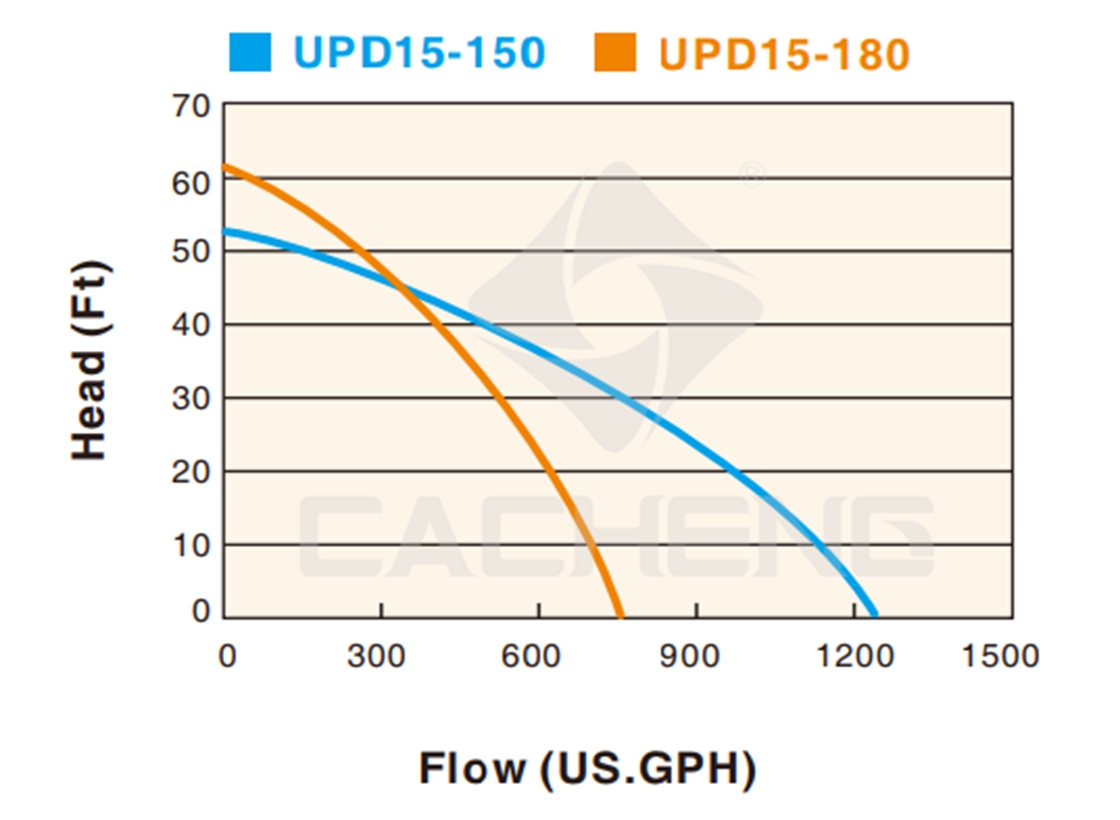

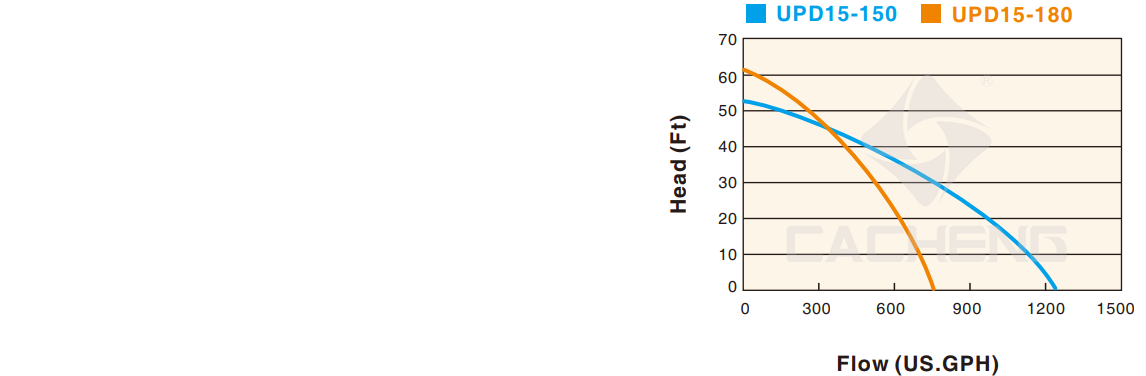

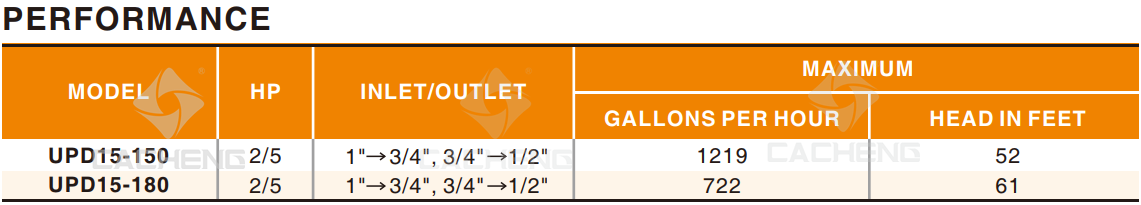

UPD15-150 / UPD15-180

110V/60Hz,127V/60Hz, 220V/60Hz

Stainless steel encapsulated rotor

Stainless steel rotor and bearing plate

Max liquid temperature 203℉

Max working pressure 145PSI

Copper pump head

For clean liquid without abrasives which are non-aggressive to the pump material.

Civilian and industrial heating systems.

Cooling and air-conditioning systems.
