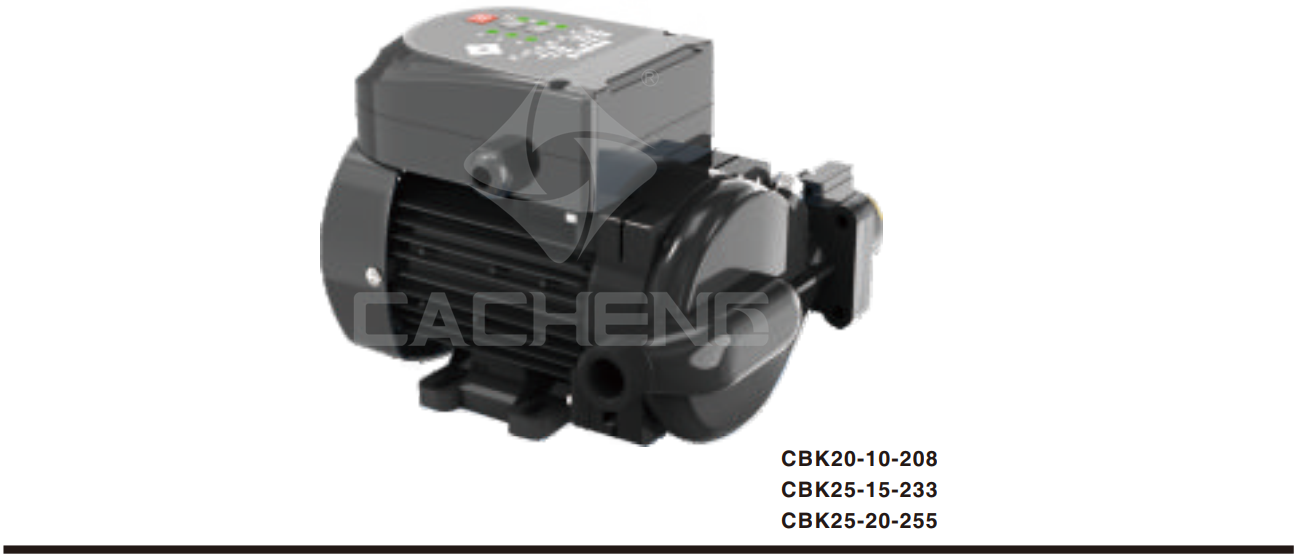

CBK20-10-208 / CBK25-15-233 / CBK25-20-255

Operating Limits:

Max.suction head:8m

Max.liquid temperature:100℃

Max.ambient tempereature:40℃

Electric pump speedL(n=2900r/min)

Insulation:Class F

Protection:IP44

Continuous service:S1

Thermal protector

Single-phase:220v/50Hz,60Hz if reguest

Material:

Pump body:Cast iron(anti-rust coating treatment)

Pump support:Cast iron(anti-rust coating treatment)

Motor housing:Aluminum

Impeller:PPO

Motor shaft:Stainless steel

Mechanical seel:Silicon carbide

Bearing:6201(200W-400W)

Function:

Linear pressure sensor is used to control the starting pressure

of pump is instead of traditional mechanical switch

At the same time, it has advanced flow control system.

The functios of the pump include:

1. stepless voltage regulation;

2. plug-in and use;

3. intelligent overlapping

4. flow control;

5. water shortage protection;

6. water start-up

7. Turn-stop protection

8. Electrophoretic rush prevention
