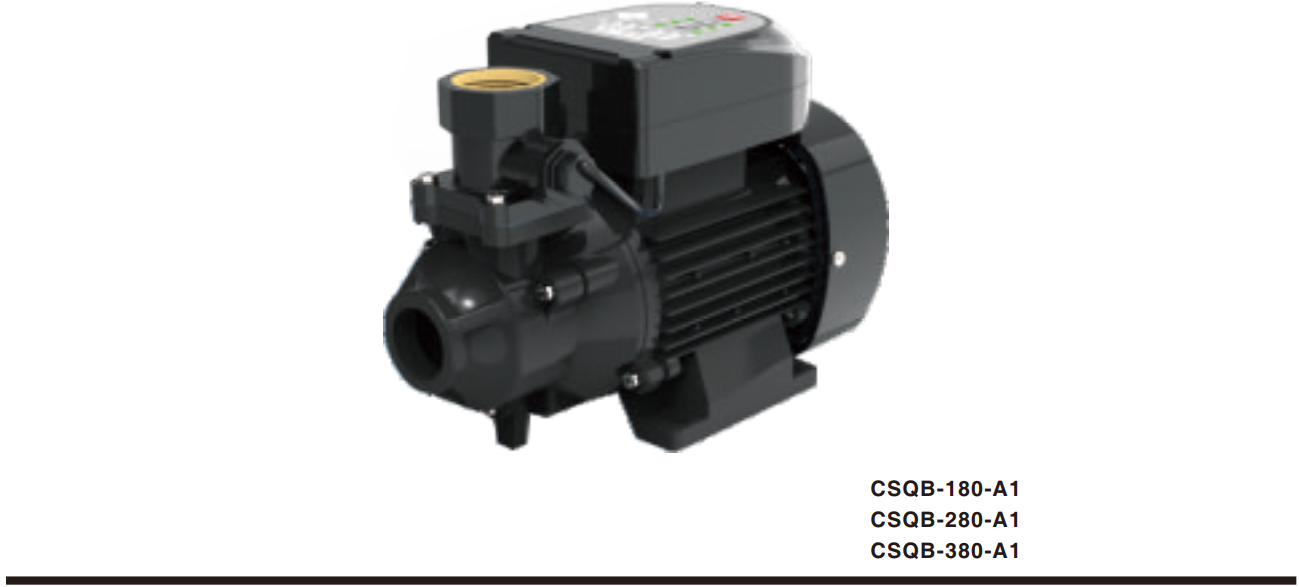

CSQB-180-A1/CSQB-280-A1/CSQB-380-A1

Operating Limits:

Max.suction head: 9m

Max.liquid temerature: 100℃

Max.ambient temerature: 40℃

Function:

Linear pressure sensor is used to control the starting pressure of pump instead of traditional

mechanical switch. At the same time, it has advanced flow control system. the functions of the pump include:

stepless voltage regulation;

plug-in and play;

Intelligent learning;

Flow control;

Water shortage protection;

Automatic opening of water supply;

turn-stop protection;

Electrophoresis rust prevention

Application:

Suitable for well water pumping, family, hotel, canteen,

garden irrigation other clean water pressurization, but

also solar energy, water heater, central air conditioning

and other equipment supporting pressurization preferred.

Motor:

Electric pump speed: (n=2900r/min)

Insulation: Class F

Protection: IP44

Continuous service: S1

Thermal protector

Single-phase: 110-240V/60Hz
