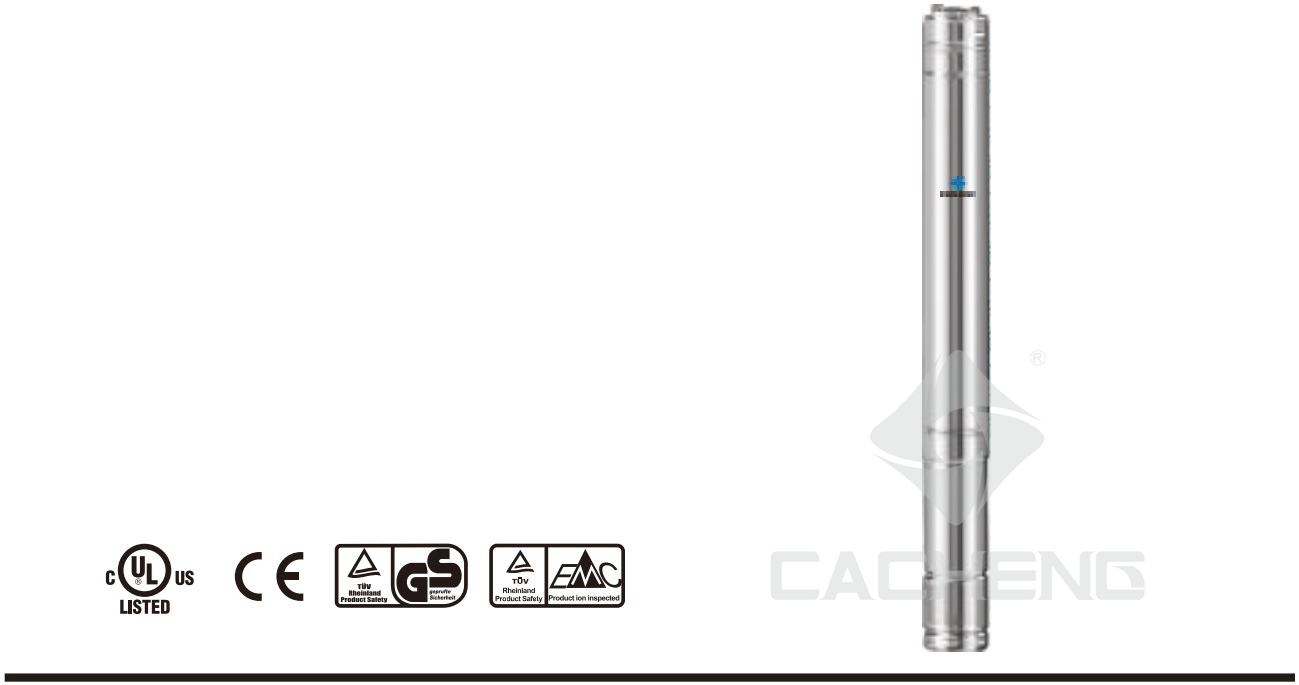

CSS 3 inch High Speed Submersible Deep Well Pumps

Ultra-high energy efficiency permanent magnet motor, built-in drive

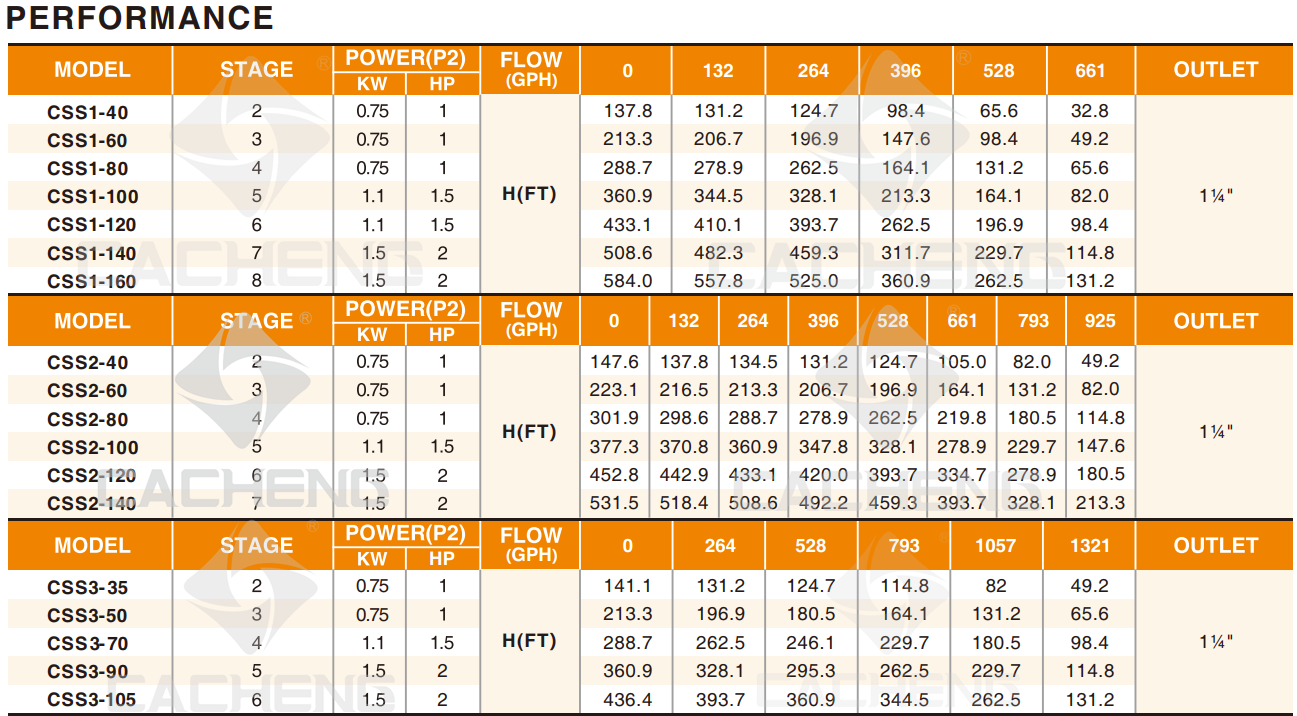

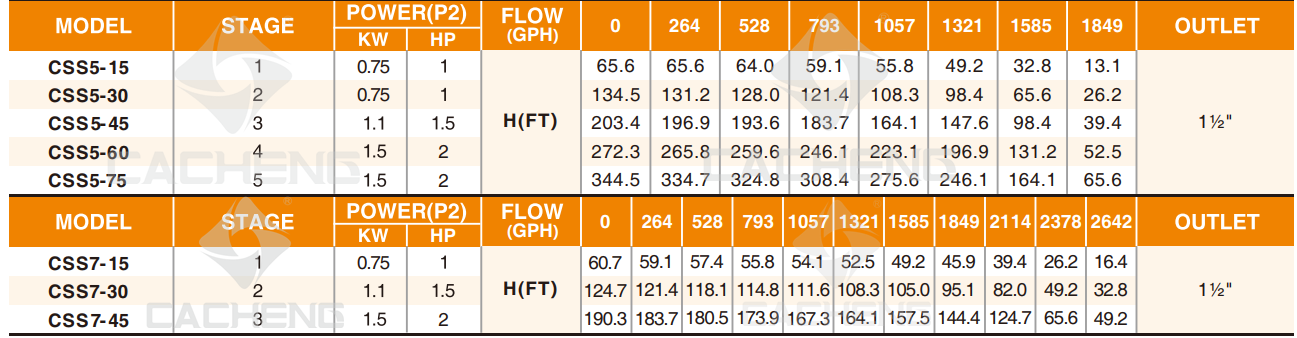

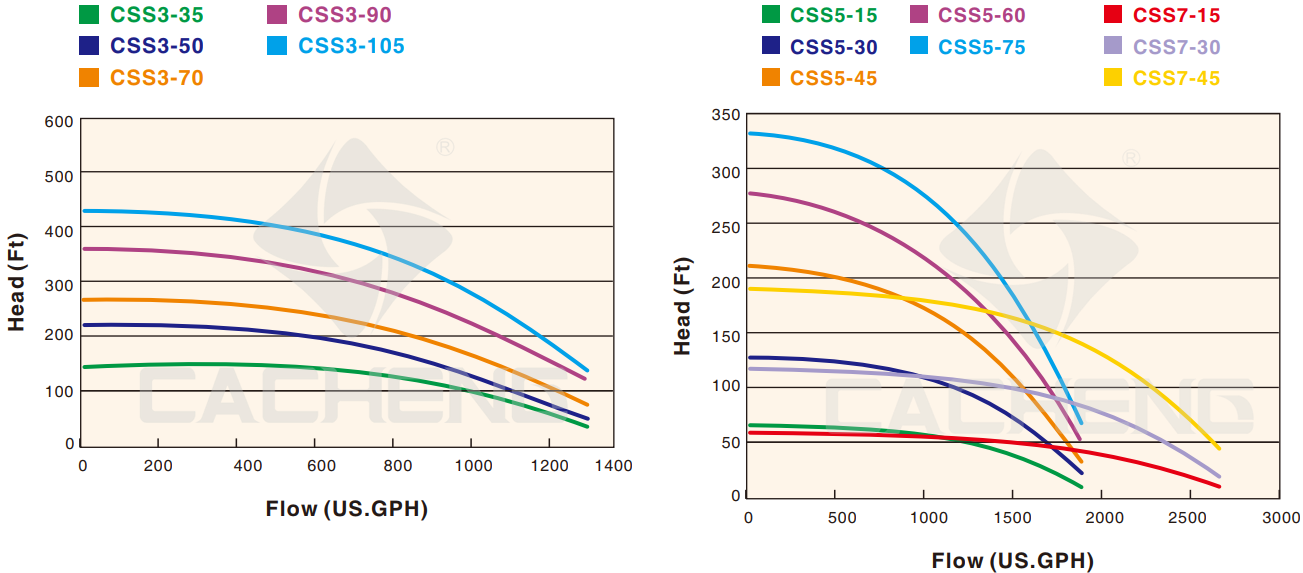

Motor speed 8000RPM brings high performance (Flow rate 264-2640GPH, HEAD~656FT)

Extra-small volume and lightweight, save 78% space compare with 4”conventional pump

Small size can save considerable money & time on well drilling

Soft start

Wide voltage range: 140-280V

Overvoltage/low voltage/overload/over-temperature/dry-running protection

Good resistance for sand erosion due to special impeller material

Shielded motor design without mechanical seal, long life and maintenance free

Force convection water cooling, it applies to the medium which temperature is 0-55 ℃

Water cooled, no oil, cannot leak oil

Anti lock-up design
