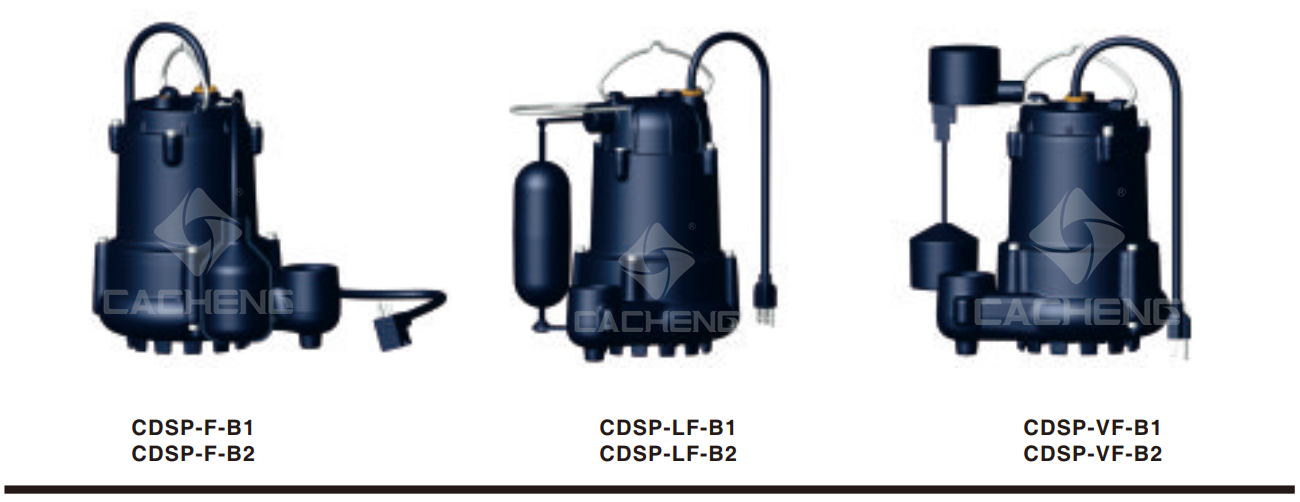

CDSP-F-B1 / CDSP-LF-B1 / CDSP-VF-B1
CDSP-F-B2 / CDSP-LF-B2 / CDSP-VF-B2
Max depth: 5m
Max liquid temp: 60℃
Max solid: 1/2 inch
Cover: cast iron
Base: cast iron
Motor housing/pump casing: cast iron
Shaft: SS304
Impeller: cast iron/plastic
Oil filled induction motor
Insulation class: B
IPX8
Applications:
Basement sumps, dewatering,
water transfer, light effluent
Oil-filled PSC motor with thermal overload protection
Multiple switch options for automatic operation
1-1/2" FNPT discharge (38 mm)

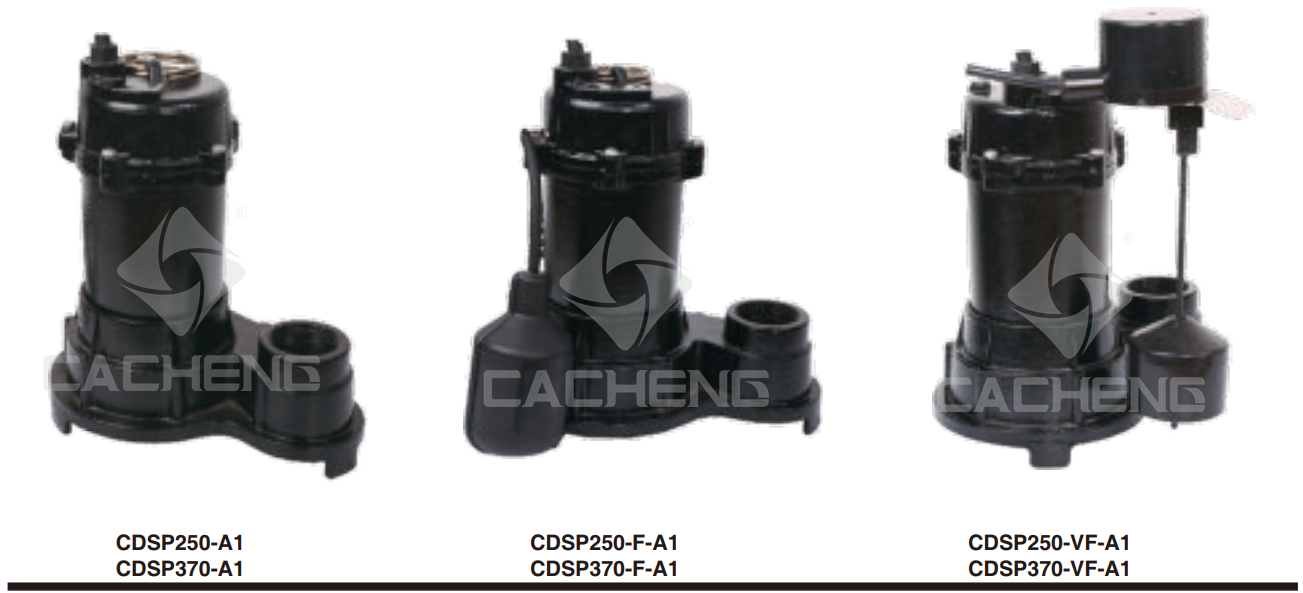

CDSPXX-A1 / CDSPXX-F-A1 / CDSPXX-VF-A1
Ideal for basements needing water drainage
Designed for easy installation without any plumbing changes
115 volt Permanent Split Capacitor (PSC) motor with thermal overload protection
Oil-filled, thermally protected motor prevent overheating which extends pump life
Stainless steel motor shaft
upper and lower ball-bearing construction
Mechanical carbon/ceramic shaft seal
Durable cast iron housing, volute and base
Vortex impeller
Solids handling up to 1/2 inch diameter
1-1/2" NPT discharge - 1-1/4" adapter included
SJTW power cord with length of 10 ft or 20ft
Piggy- back power cord for manual or automatic operation
Vertical level control switch fits basins as small as 10-1/2"
